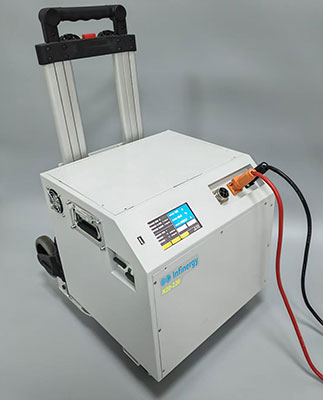

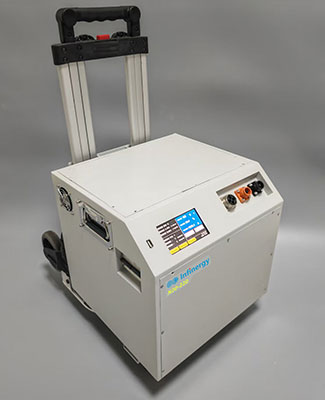

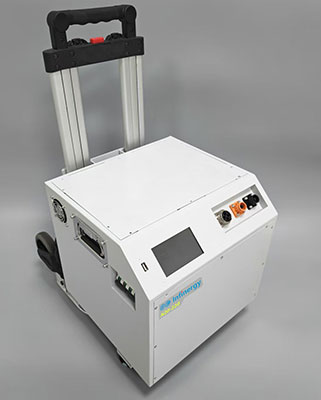

Model:N20

Substation Portable DC Source ,Portable DC Power Pack(110V/220V),Portable DC Power Supply for Switchgear,Emergency DC Power Supply for substation
  • NCM Lithium Battery
  • 220V/4.03KWh
  • DC Ouput(168VDC~235VDC)
  • Max 40A,Peak 60A
REQUEST A QUOTE
Model NumberN20
Battery
Battery TypeNCM
Cell model/Configuration3.7V20Ah/56S4P
Nominal Capacity20AH
Nominal Energy4.03KWh
Nominal Voltage207.2VDC
DC Output
Operating voltage range168VDC ~ 235VDC
Max discharge current40A
AC input charging165-260VAC(50/60Hz)
Built-in intelligent BMSShort-ciruit protection/overvoltage protection/overcurrent protection/over-temperature protection
Communication portCAN/RS232/RS485
DisplayCD+LED Display
Brand NameYFN
Place of Origin Shenzhen,China
OEM/ODMAccepatable
Storage Temperature-30~55°C
ApplicationSubstation Portable DC Source ,Portable DC Power Pack(110V/220V),Portable DC Power Supply for Switchgear,Emergency DC Power Supply for substation
Dimension (L*W*H)(L)358mm * (W)381mm * (H)440mm
Weight40KG
